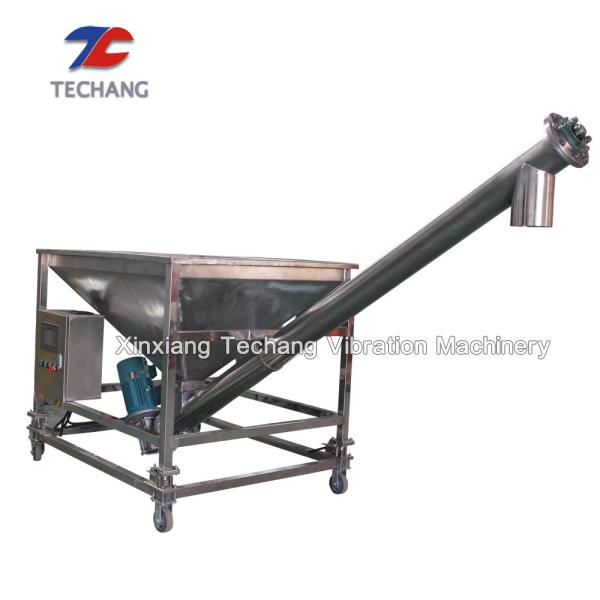

Food Stainless Steel Auger Weighing Screw Conveyor Hopper Powder Inclined Screw Feeder
Introduction
Food Stainless Steel Auger Weighing Screw Conveyor Hopper Powder Inclined Screw Feeder is the main unit for mechanical transport operation of industry and agriculture, which uses motor to drive screw rotation and move material to achieve conveying purpose. Food Stainless Steel Auger Weighing Screw Conveyor Hopper Powder Inclined Screw Feeder is suitable for all industries such as building material, chemical industry, power industry, metallurgy, coal industry and grain industry, for horizontal or tilted transportation for powdery, granular and small lump materials, such as coal, dust, residue, cement and grain which their temperature is less than 200℃.
Food Stainless Steel Auger Weighing Screw Conveyor Hopper Powder Inclined Screw Feeder can convey sorts of powder materials. Combined with the package-machine of our company, also can be used separately. Complete machine made in stainless steel or carbon steel, the machine consists of motor, reducer, coupler, inlet, screw blade, bracket, lifting shackle, the end bearing, outlet, and so on.
Features
Food Stainless Steel Auger Weighing Screw Conveyor Hopper Powder Inclined Screw Feeder is a kind of machine that uses the motor to drive the screw to turn and push the material to realize the purpose of conveying. It can be transported horizontally, obliquely or vertically. It has the advantages of simple structure, small cross-sectional area, good sealing, easy operation, easy maintenance and easy closed transportation.
1. Simple structure, easy operation and excellent sealing performance.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Charging and Discharging can be conducted at more than one points in the middle.
Application
Food Stainless Steel Auger Weighing Screw Conveyor Hopper Powder Inclined Screw Feeder is widely used in building materials, metallurgy, chemical, electric power, coal, machinery, light industry, grain and food industry, suitable for conveying powder, granular, small pieces of materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. should not be easily perishable, viscous, easy to agglomerate the material. Commonly seen in the food industry, these conveyors transport ingredients to and from mixers, ovens and vats and need to be sterile at all times. Therefore, they are commonly made of stainless steel, a smooth food grade metal that is less likely to contaminate edible ingredients than other materials and is easily cleaned.
Technical data
| Model | Diameter | Screw Rotation Speed | Inclination Angle | Conveyor Length |
| (mm) | (r/min) | (degree) | (m) |
| GX160 | 165 | 20,30,35,45,60,75,90,120,150,190,207,290 | <90 | 3~30 |
| GX219 | 219 |
| GX273 | 273 |
| GX325 | 325 |
